Common Rail Tools & Accessories

Model: TK 5000

Common Rail Injector Tool Kit is ready to mount kit meant for all Diesel FIP Test Benches and comprises quality tools that are developed with precision and is suitable for mantling/dismantling as well as assembling/disassembling needs of common rail injectors of Bosch, Denso and Siemens make. These also feature special customized octagonal socket that allows for loosening as well as tightening needs of nozzle cap nut in Bosch CR injectors.

Further, the presence of special box spanner also makes it possible for loosening as well as tightening of grub screw of Bosch CR injectors. We also hold expertise in offering customized tools that allows for loosening as well as tightening of slotted round plates that come fixed in Siemens CR injectors.

(Ready to be mounted on all Diesel FIP Test Benches)
The tool kit comprises of high quality tools manufactured with absolute precision. It consists of various tools which are suitable for mantling and dismantling / assembling and disassembling of Bosch, Denso and Siemens common rail injectors. The tool kit consists of the following:-

1. Bosch CR injector valve ball reseating lapping tool
2. Special customized octagonal socket for loosening and tightening the nozzle cap nut in Bosch CR injectors.
3. Special box spanner suitable for loosening and tightening the grub screw of Bosch CR injectors.
4. Special customized tool for loosening and tightening slotted round plate fixed in Siemens CR injectors.
5. Special socket for loosening and tightening the external bolts on Siemens common rail pumps.
6. Special tool for loosening and tightening round plate (containing 4 holes) fixed on Denso CR injectors.
7. Ball Catcher Tool to hold and remove / insert steel / ceramic balls in CR injectors.
8. Hard and ground steel balls - Sizes - a) 1.3 mm Diameter  b) 1.5 mm Diameter suitable for Bosch common rail injectors. Quantity - 20 each.
9. Forceps to hold and remove / insert steel balls.
10. Excellent quality wooden packaging box.

High Pressure Gauge for CR Application are the heavy duty glycerin filled dual scale pressure gauges that provide high accuracy as well as precision working with accuracy of +/- 1%. Designed for high pressure applications, these are ideally suited for meeting the needs of common rail diesel applications. The working specifications of these gauges include size/type of 6 " (150 mm), range of dual scale - 0-2100 KG/Cm Sq. and 0 - 30000 PSI equivalent to 0 - 2000 BAR, least count of 500 PSI or 25 Kg / Cm sq and accuracy of +/- 1%.

Further, these also come with connection of 1/2 " BSP (M) with mounting from direct bottom as well as warranty of one year against any manufacturing defects. These find suitability in various applications for all types of liquids including Gasoline, Diesel, water and others.

1. Size / Type : 6 " (150 mm)
2. Range : Dual Scale -   0-2100 KG/Cm Sq. and 0 - 30000 PSI equivalent to 0 - 2000 BAR
3. Least Count : 500 PSI or 25 Kg / Cm sq.
4. Accuracy : +/- 1%
5. Connection : 1/2 " BSP (M)  (Extra adapters can be provided on request if some other thread size is needed, feel free to contact us
6. Mounting : Direct Bottom
7. Warranty : One year against any manufacturing defects
8. Weight : 3 KG
9. Comes complete with its calibration certificate.
10. Can be used for various applications for any kind of liquids (Gasoline, Diesel, water, etc.)

NOTE : We have all kinds of pressure gauges available with us - all sizes / ranges / Thread sizes / Glycerin filled gauges etc. So please feel free to contact us for any of your   requirements.

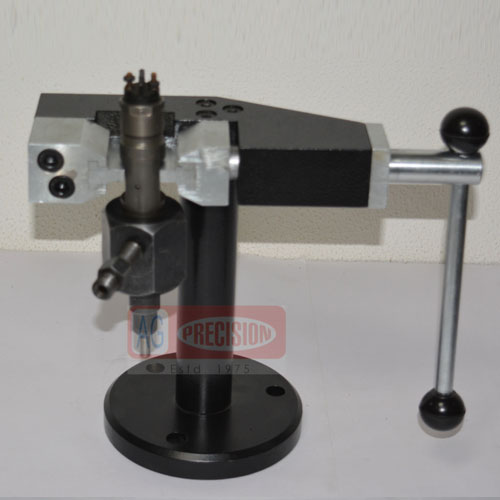

Common Rail Injector Holding Fixture / Plate finds application in fulfilling the demands of mounting all types of common rail injectors including that of Denso, Siemens, Bosch, Delphi and others. Facilitating mantling / assemble as well as dismantling / disassembly of common rail injectors, these can be easily mounted on work bench through use of Allen bolts as well as are made using excellent quality hardened ground alloy steel that provides in them rugged as well as long lasting service life.

Features

1. The CR injector holding fixture is suitable for mounting all kinds of common rail injectors such as Bosch, Delphi, Denso, Siemens and others.
2. Facilitates mantling / assemble and dismantling / disassembly of common rail injectors.
3. Can be easily mounted on your work bench using Allen bolts (Which will be provided along with the plate)
4. Made of excellent quality Hardened ground alloy steel. Hence is very rugged and has a long lasting life. Weight - 6 KG.

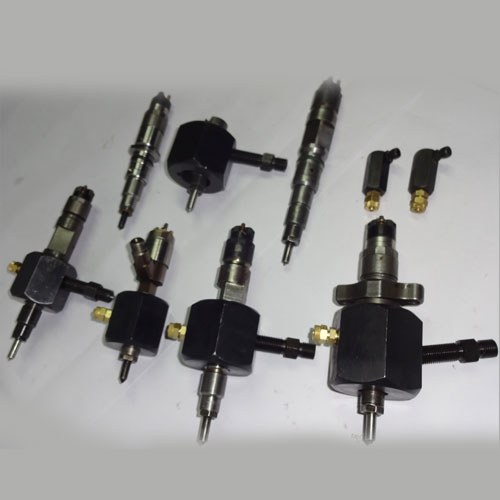

Special Adapter Kit for Bosch Dodge Cummins Common Rail Injector is the installation Adapter / Pod Kit that are used on Dodge Cummins engines in North America (USA/Canada) with same type of Bosch common rail injector also used worldwide in regions like Australia, Europe, Russia on different engines. The offered installation adapter finds compatibility with Bosch Common Rail Injector parts and allows for correct installation of mentioned injectors.

Further, these also allow users to collect output as well as return / back leak of injector separately and in a proper fashion. Available in rugged construction made using special alloy steel, the kit comprises Installation Adapter, Output & return delivery adapters with support of hoses and dispensers as well as High pressure line that meets the demands of connecting injector input to fuel rail/supply source.

Installation Adapter / Pod Kit for Bosch Cummins Dodge Common Rail Injector
Used on Dodge Cummins engines in North America.

(USA/Canada), note that the same Bosch common rail injector is used worldwide (Russia, Australia, Europe etc.) on different engines. The installation adapter is compatible with Bosch Common Rail Injector part numbers - 0 445 120 018, 0 445 120 210, 0 445 120 032, 0 445 120 103, 0 445 120 114, 0 445 120 208 etc.

Used for correct installation of the mentioned injectors, the user can collect both the output and return / back leak of the injector properly and separately.

Excellent quality and rugged in construction. Made of special alloy steel.

This listing is for the complete kit as shown in image 1 and 2 above. It comes complete with:-

1.  Installation Adapter
2.  Output and return delivery adapters with hoses and dispensers.
3. High pressure line to connect the injector input to the fuel rail / supply source.

260 ml Test Tube Set of 6 For All Test Benches finds application in laboratory use as well as for meeting the requirements of mounting on diesel fuel injection pump test benches among others. Made available with Bosch in standard size of 260 ML, these are mounted on newer Bosch test benches / other test benches of all makes and feature Test Tube Lengths of 300 MM with Outer Diameter of 40 mm.

The test tubes are of excellent make and are made using Borosilicate glass that is of uniform thickness as well as comes with capability to handle high heat tolerance. Here, our expertise also lies in supplying these in different sizes as well as capacities based on client’s requirements. For customer’s convenience, we maintain with us standard sizes in stock with option of rest made to order.

Bosch Standard size of 260 ML,to be mounted on the newer Bosch test benches / other test benches of all makes.

Test Tube Length: 300 MM, Outer Diameter (O.D.): 40 mm, Excellent quality test tubes made of Borosilicate (Borosil) glass, of uniform thickness and possessing high tolerance to heat.

Note: We can supply all Sizes / Capacity test tubes based upon your requirement, we keep some standard sizes in stock and rest will be made to order. Please feel free to contact us and let us know your requirement, we can then quote and inform you the delivery period accordingly.

44 ml Test Tube Set of 6 For All Test Benches find application in laboratory as well as is meeting the demands of mounting on diesel fuel injection pump test benches. These are made available for Bosch make in standard size of 44 ML and can be easily mounted on newer Bosch test benches as well as other all make test benches.

Featuring Test Tube Length of 300 MM with outer diameter of 40 mm, these are of superior finish quality made using Boro-silicate glass of uniform thickness as well as coming with high heat tolerance support. Further, we can also offer these in finish specifications as demanded by the customers with some standard sizes maintained in stock and rest made to order.


Bosch Standard size of 44 ML,to be mounted on the newer Bosch test benches / other test benches of all makes.

Test Tube Length: 300 MM, Outer Diameter (O.D.): 40 mm, Excellent quality test tubes made of Borosilicate (Borosil) glass, of uniform thickness and possessing high tolerance to heat.

Note: We can supply all Sizes / Capacity test tubes based upon your requirement, we keep some standard sizes in stock and rest will be made to order. Please feel free to contact us and let us know your requirement, we can then quote and inform you the delivery period accordingly.
